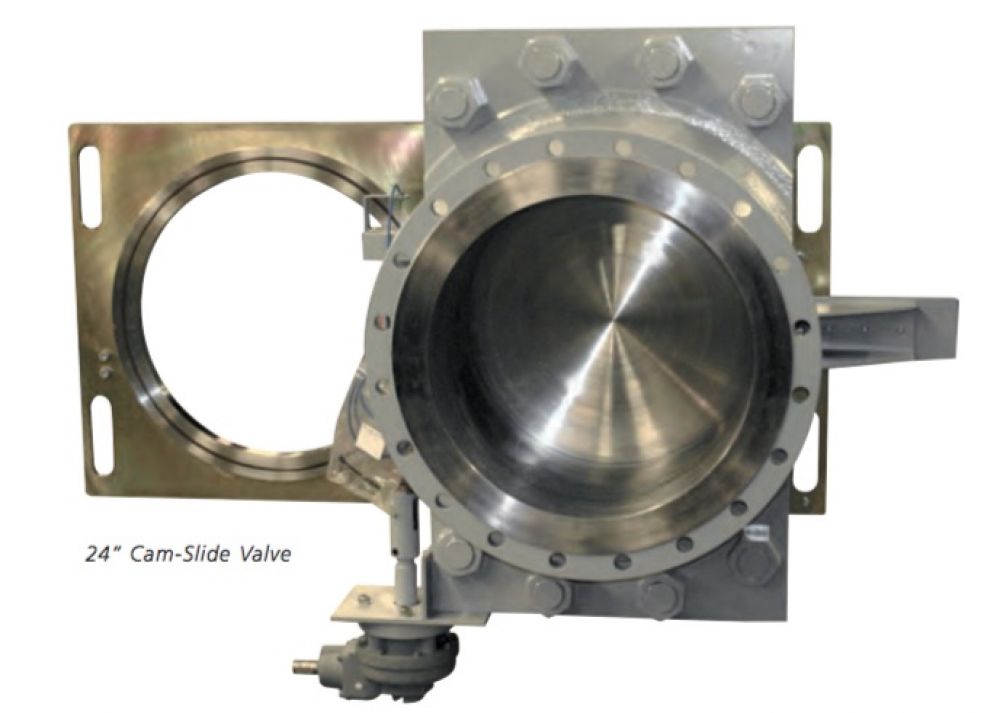

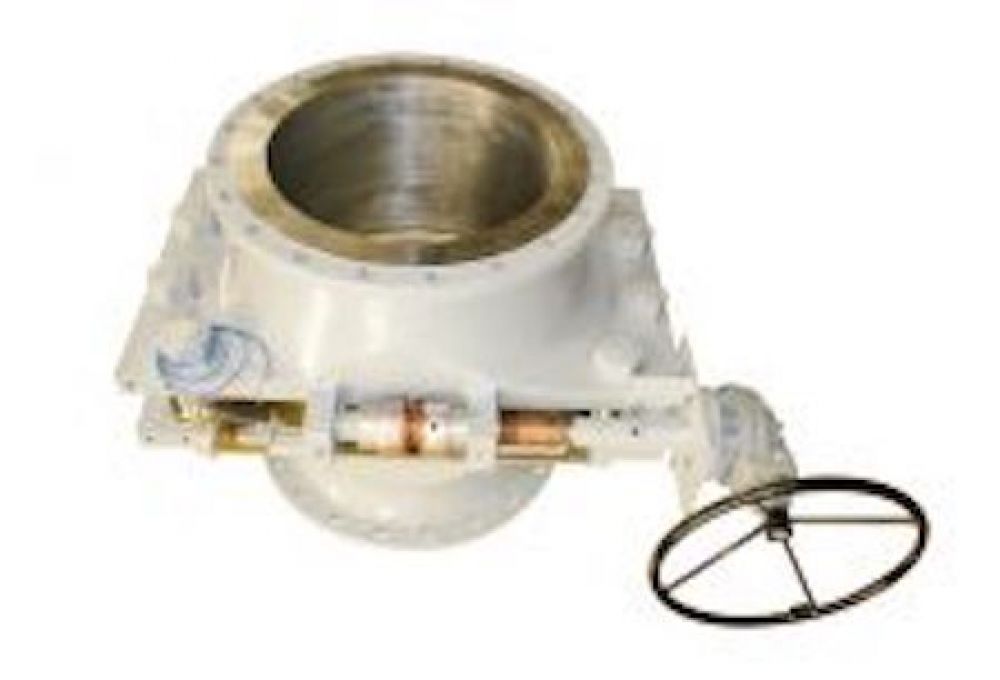

Cam-Slide
The Cam-Slide (Model 81 CS) is a sliding quick acting line blind. It has a multi bolt design and a rectangular body. It is appropriate for applications that require fast blinding turnaround up to 2500# pressure class. It can be made as a standard design up to 64 inches (DN 1600).
Cam-Slide - Sliding line blind
Design & Operation

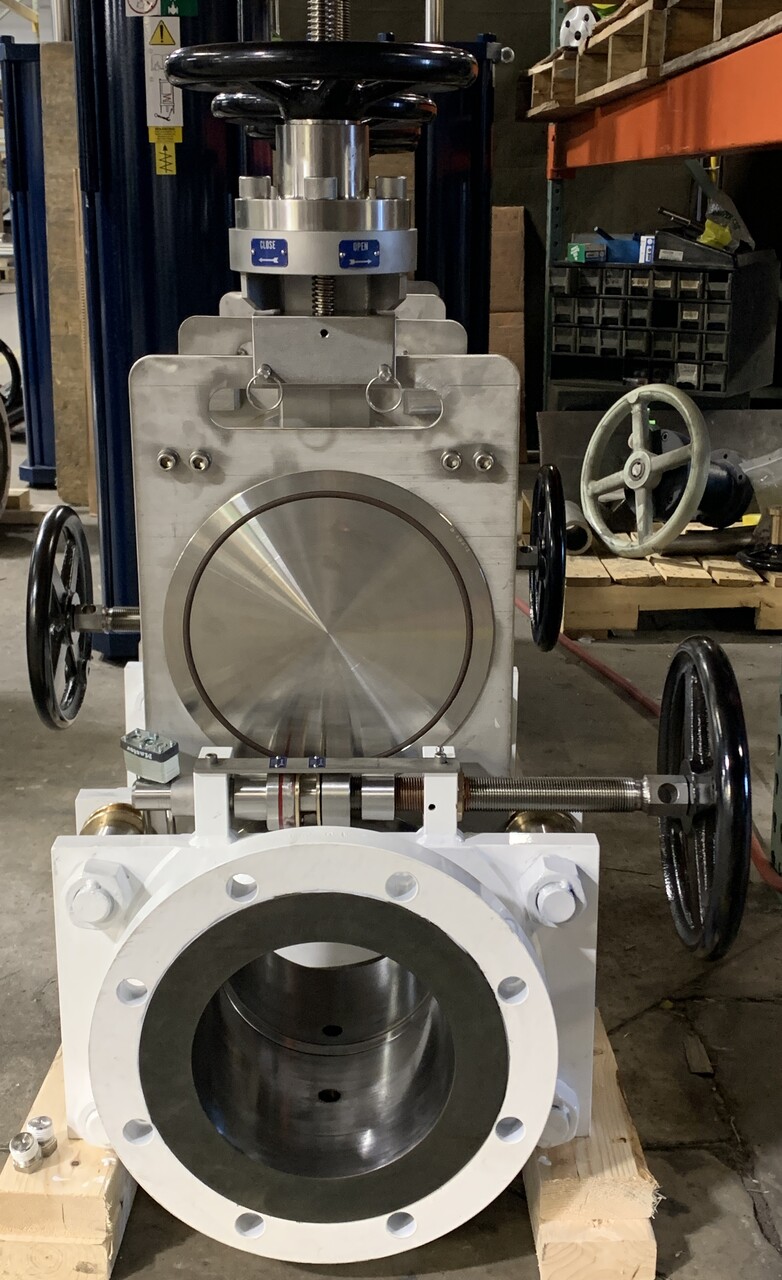

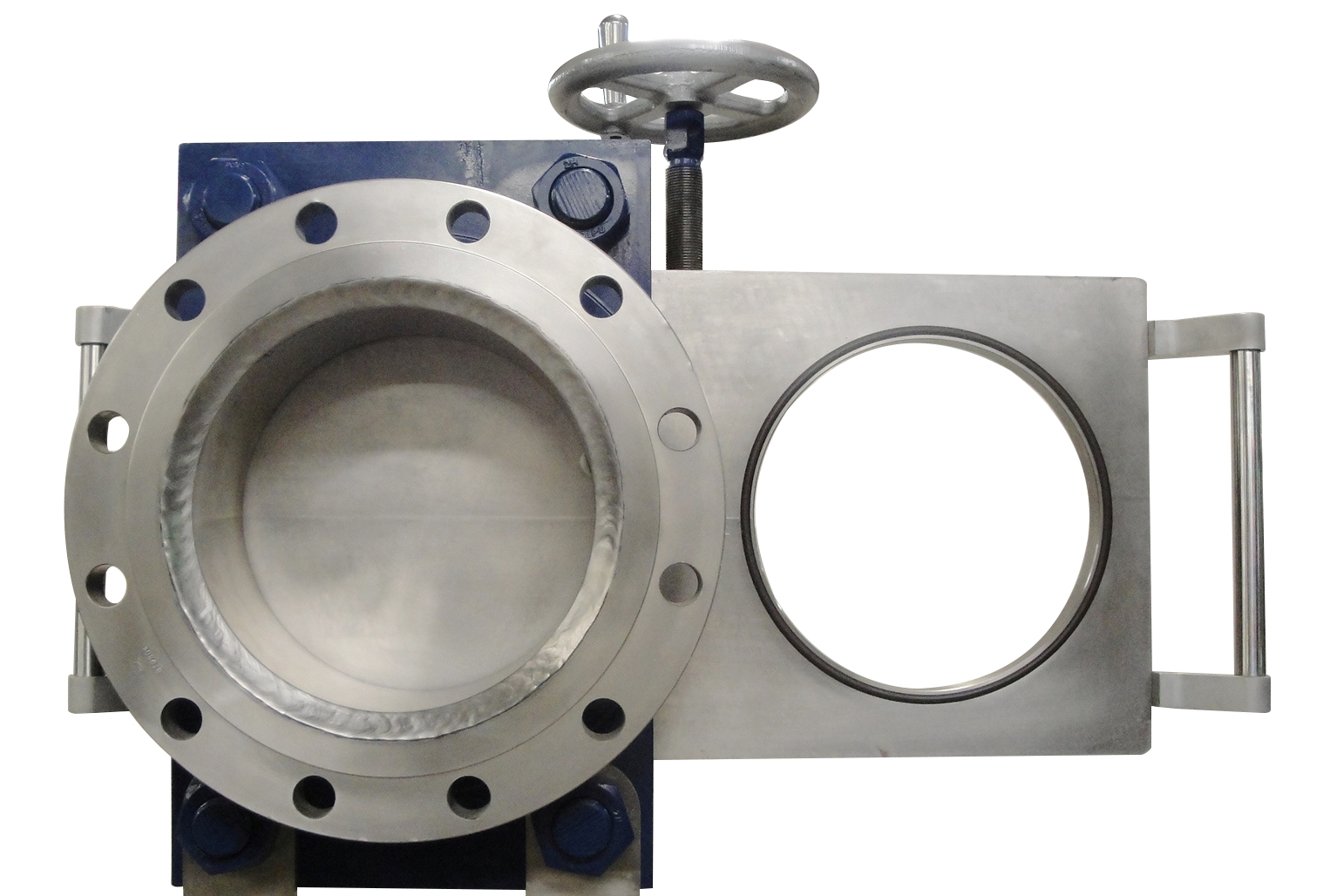

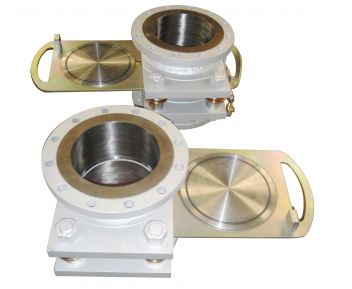

Its multi bolt design enables a more compact build and lighter weight which make it ideal for tight spaces with reduced face to face dimensions. The Cam-Slide is also available as a non spill line blind.

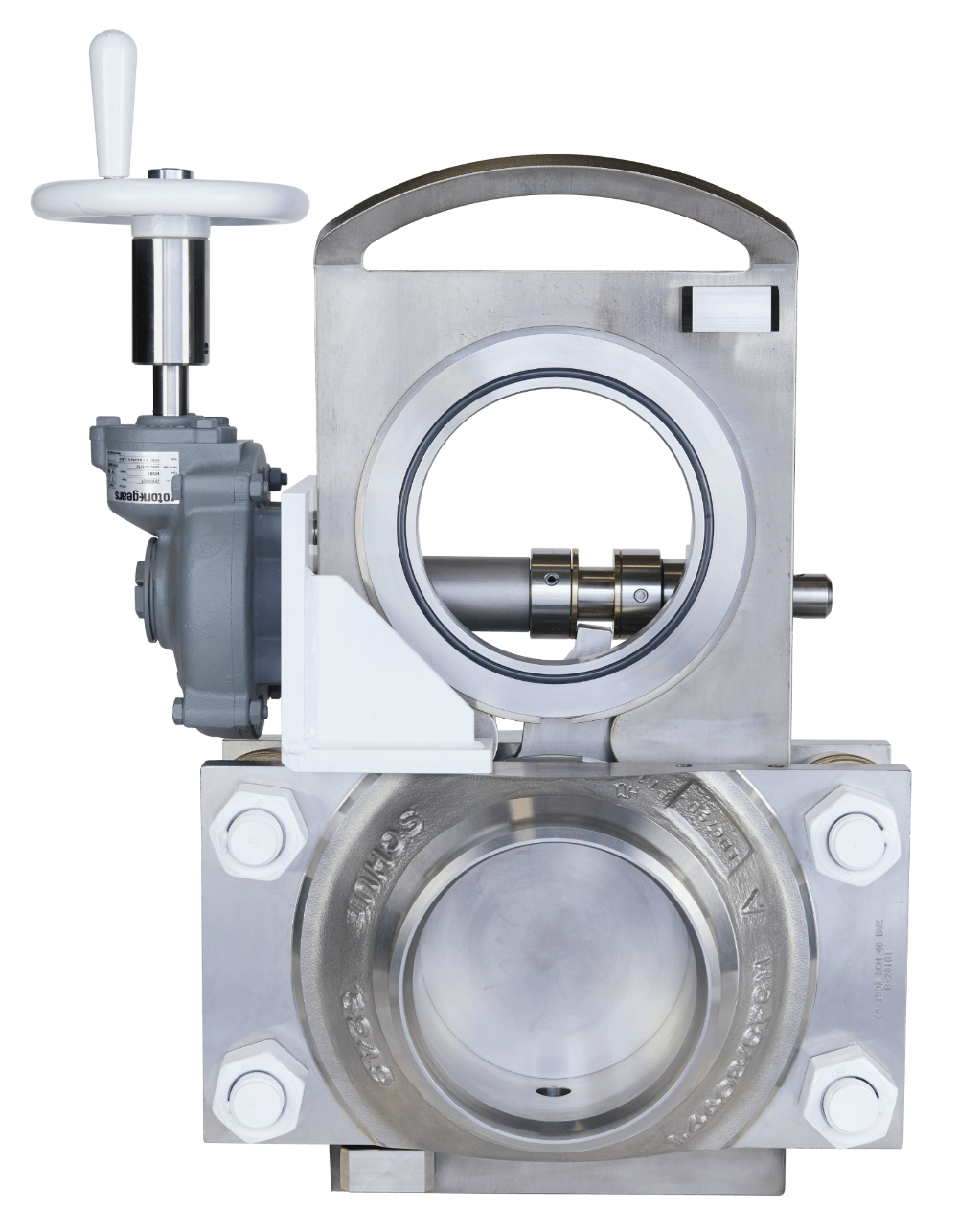

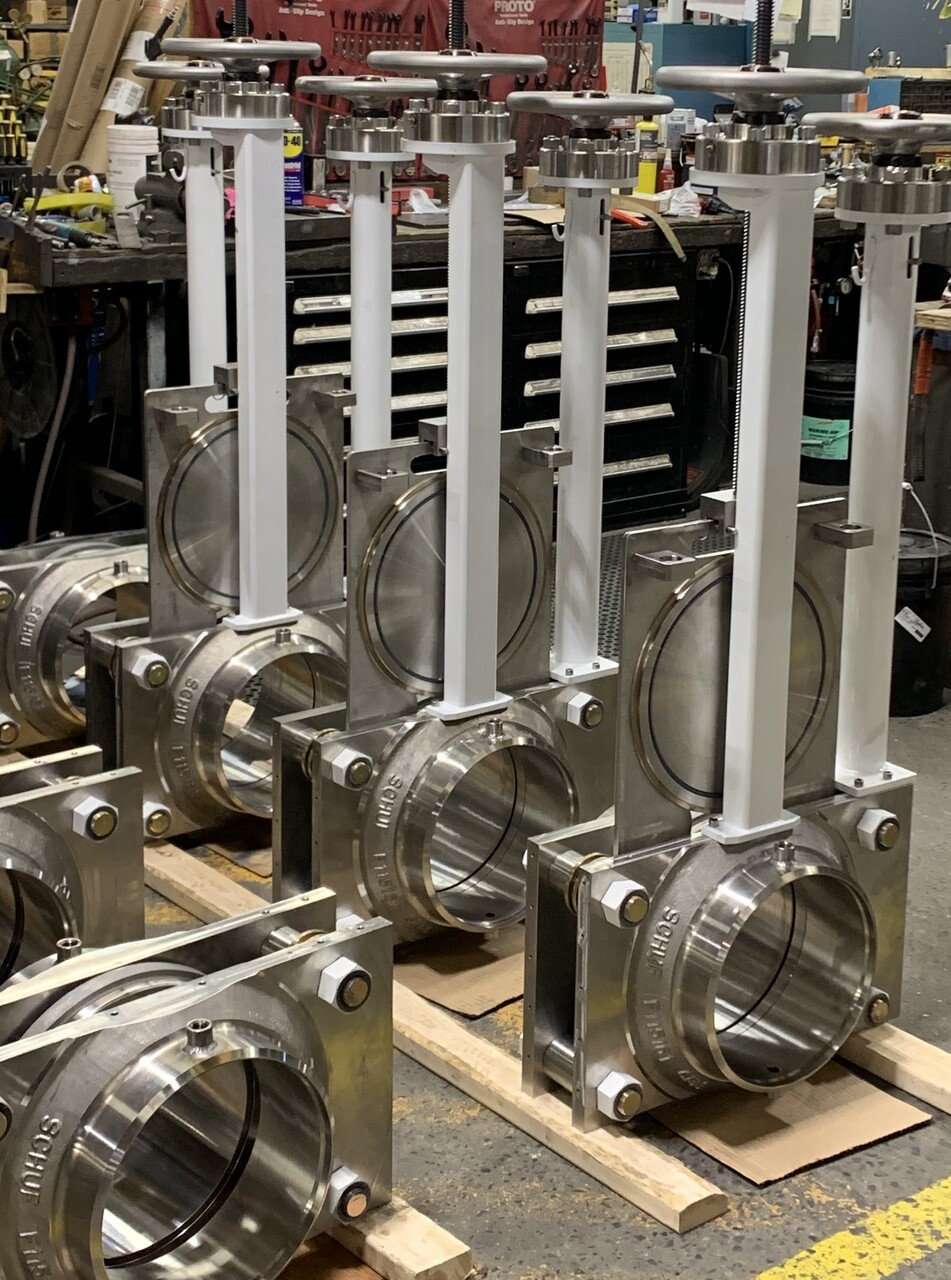

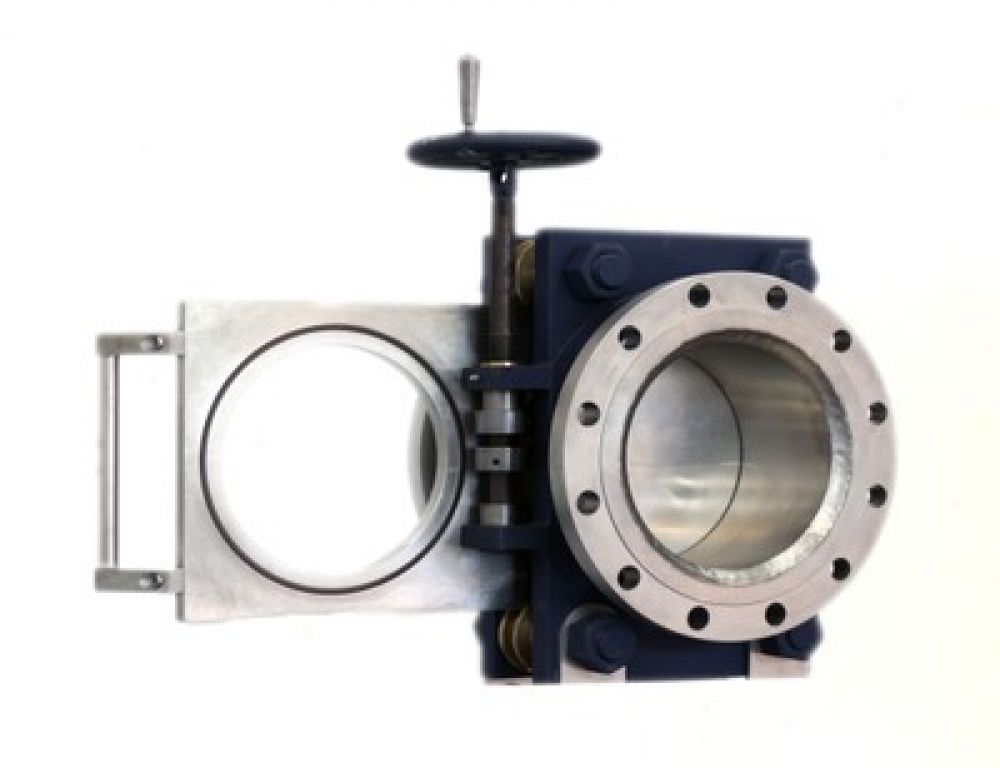

The Cam-Slide utilizes the tried and tested Cam design. This ensures that the spectacle plate can be locked into place or released in seconds. The plate can then be moved in a sliding motion from left to right and vice versa with ease. For larger size lines 12 inches and above the Cam-Slide can be equipped with a gearbox or electric actuator, making plate position changing even easier.
A special High Temperature Cam-Slide design is also available for processes that require to withstand temperatures over 327 degrees C.
Features
- Man Safe – 100% positive isolation
- Compact design for tight fit applications
- Available in sizes up to 64 inches and ASME 2500#
- Non line spreading design
- Simple operation – one person, one side, no bolts need to be removed
- Conforms to or exceeds many safety and engineering standards
- Fast, Compact and man Safe

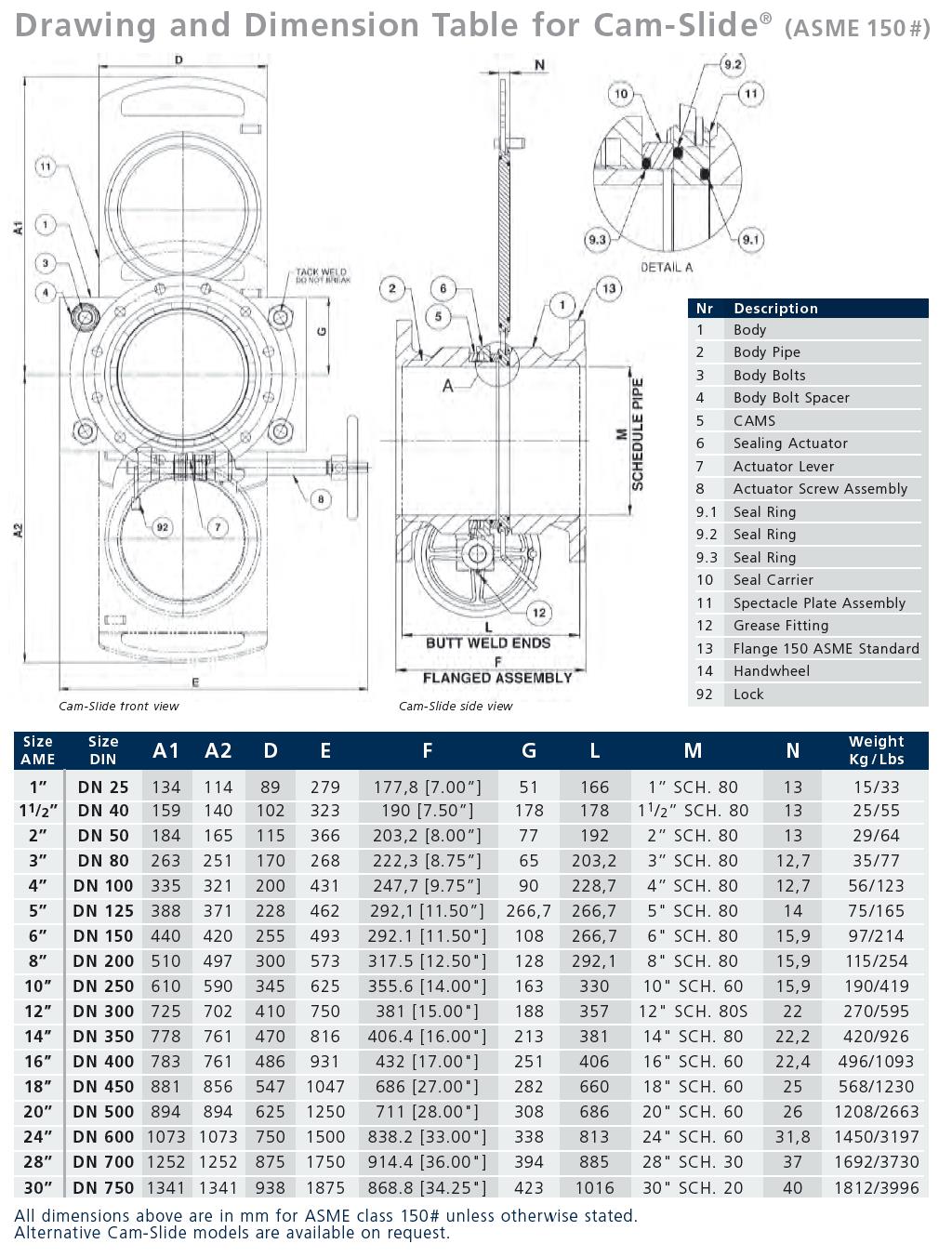

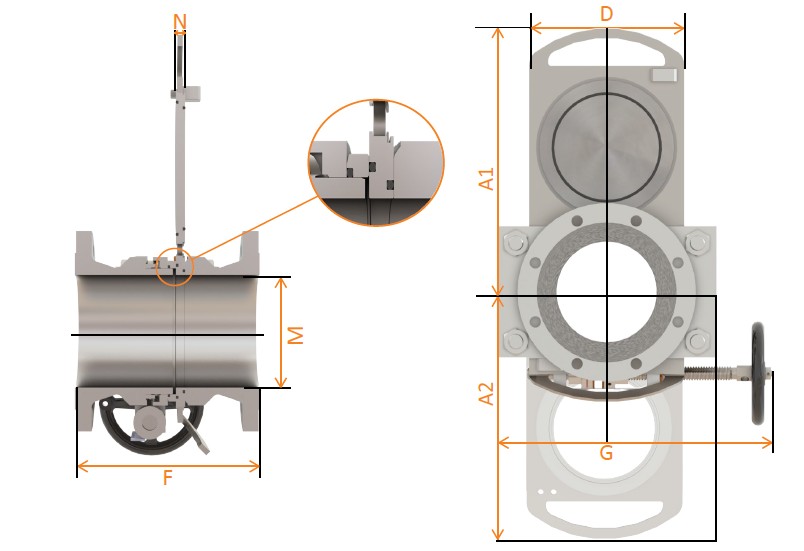

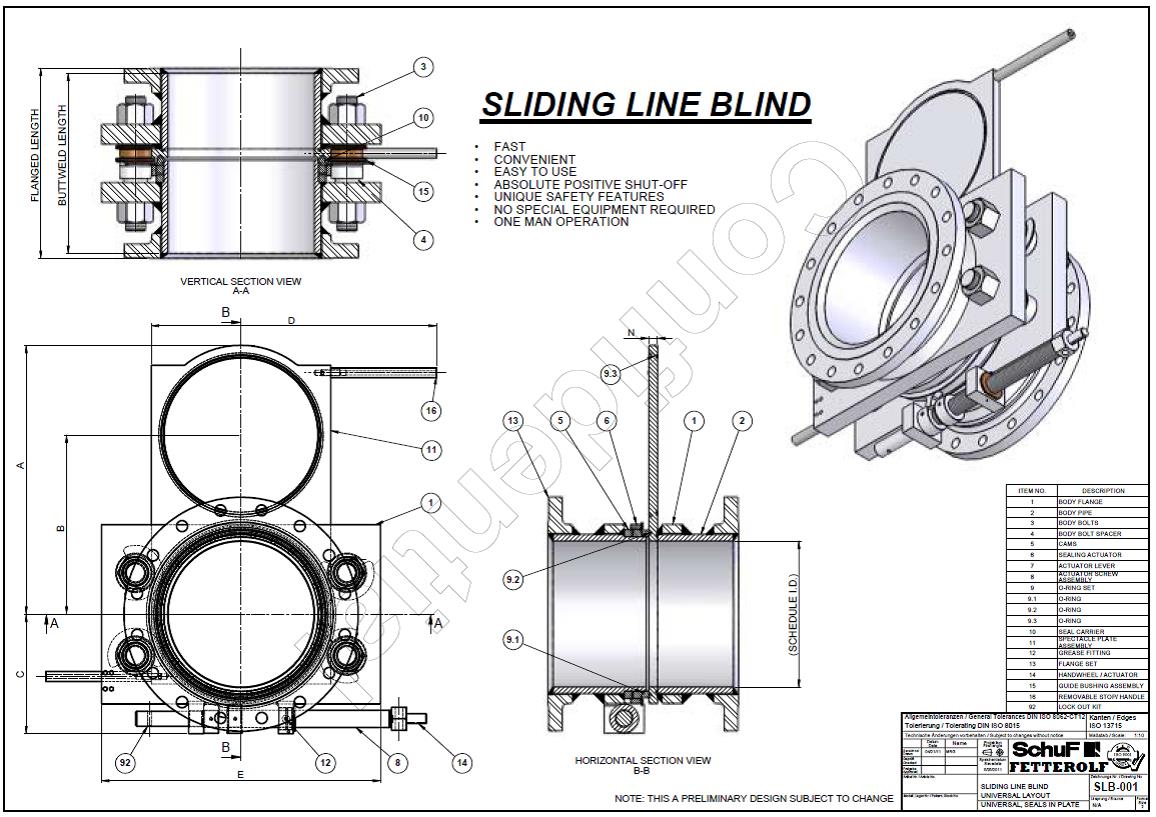

Drawing & Dimensions
| CAM-SLIDE® LINE BLIND DIMENSION TABLE (ASME 150#) in mm | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| SIZE (ASME) | SIZE (DIN) | A1 | A2 | D | F | G | M | N | ~ Weight Kg/Lbs |
| 1" | DN 25 | 134 | 114 | 93 | 178 [7.00"] | 284 | 1" SCH. 80 | 13 | 12/27 |
| 1-1/2" | DN 40 | 166 | 138 | 104 | 190 [7.50"] | 311 | 1-1/2" SCH. 80 | 13 | 16/35 |
| 2" | DN 50 | 197 | 162 | 115 | 203 [8.00"] | 337 | 2" SCH. 80 | 13 | 19/42 |
| 3" | DN 80 | 263 | 251 | 170 | 222 [8.75"] | 368 | 3" SCH. 80 | 13 | 35/77 |
| 4" | DN 100 | 335 | 322 | 200 | 248 [9.75"] | 458 | 4" SCH. 80 | 13 | 56/123 |
| 6" | DN 150 | 440 | 420 | 255 | 292 [11.50"] | 493 | 6" SCH. 80 | 16 | 97/214 |
| 8" | DN 200 | 510 | 497 | 300 | 317.5 [12.50"] | 573 | 8" SCH. 80 | 16 | 115/254 |
| 10" | DN 250 | 610 | 590 | 345 | 356 [14.00"] | 625 | 10" SCH. 60 | 16 | 190/419 |
| 12" | DN 300 | 725 | 702 | 410 | 356 [14.00"] | 750 | 12" SCH. 80S | 23 | 270/595 |
| 14" | DN 350 | 778 | 761 | 470 | 406 [16.00"] | 816 | 14" SCH. 80 | 23 | 420/926 |
| 16" | DN 400 | 783 | 761 | 486 | 432 [17.00"] | 931 | 16" SCH. 60 | 23 | 496/1093 |
| 18" | DN 450 | 878 | 861 | 536 | 446 [17.56"] | 1175 | 18" SCH. 60 | 26 | 635/1391 |
| 20" | DN 500 | 894 | 894 | 625 | 711 [28.00"] | 1250 | 20" SCH. 60 | 26 | 1208/2663 |
| 24" | DN 600 | 1073 | 1073 | 750 | 838 [33.00"] | 1500 | 24" SCH. 60 | 32 | 1450/3197 |
Options
- A broad range of sealing rings to match the specific medium and operating conditions including the most common – Viton, Kalrez, Aflas, EPR/EPDM, Silicone, etc.
- Stem and dust covers for powder applications or dusty operating environments
- Lock out devices

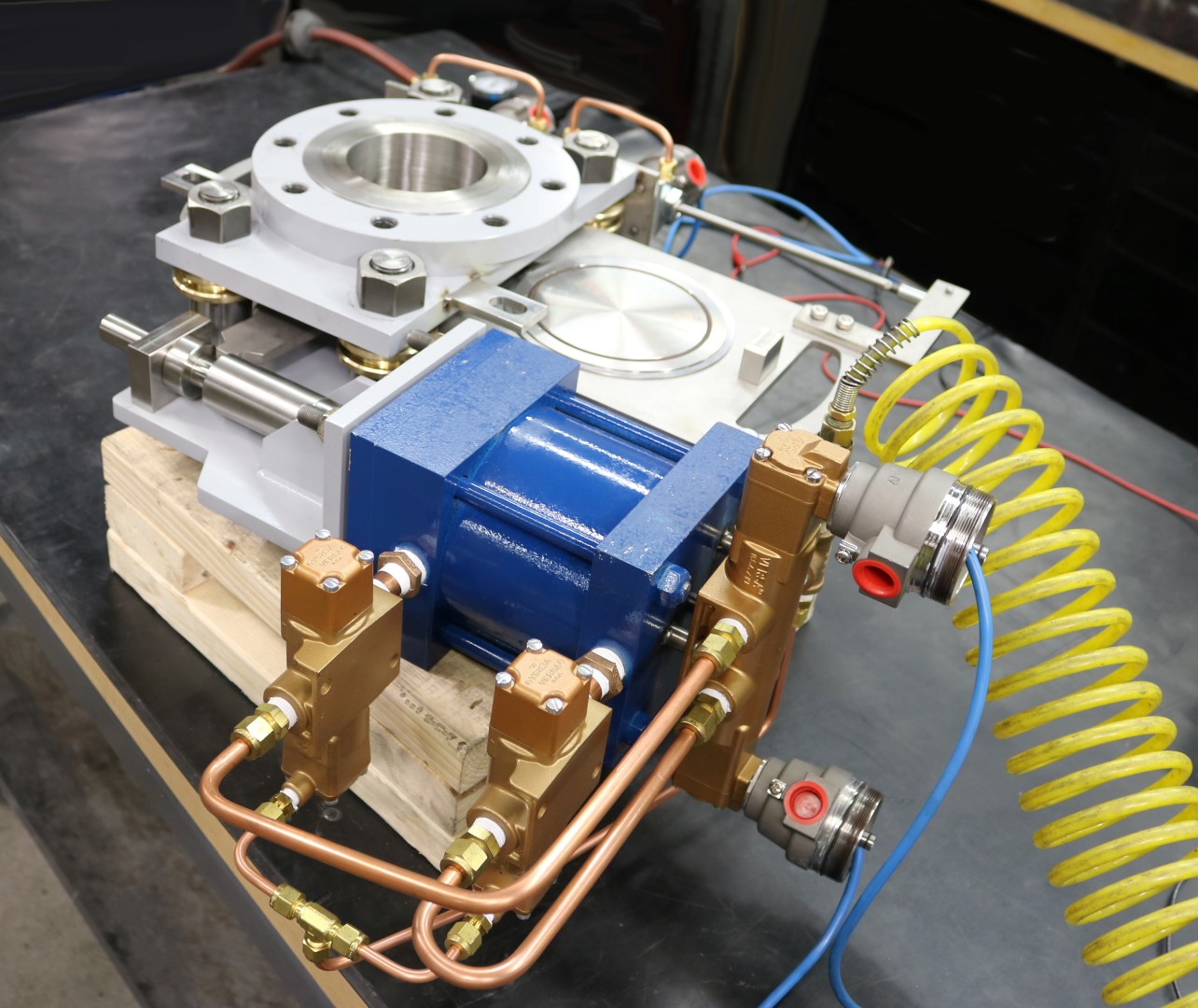

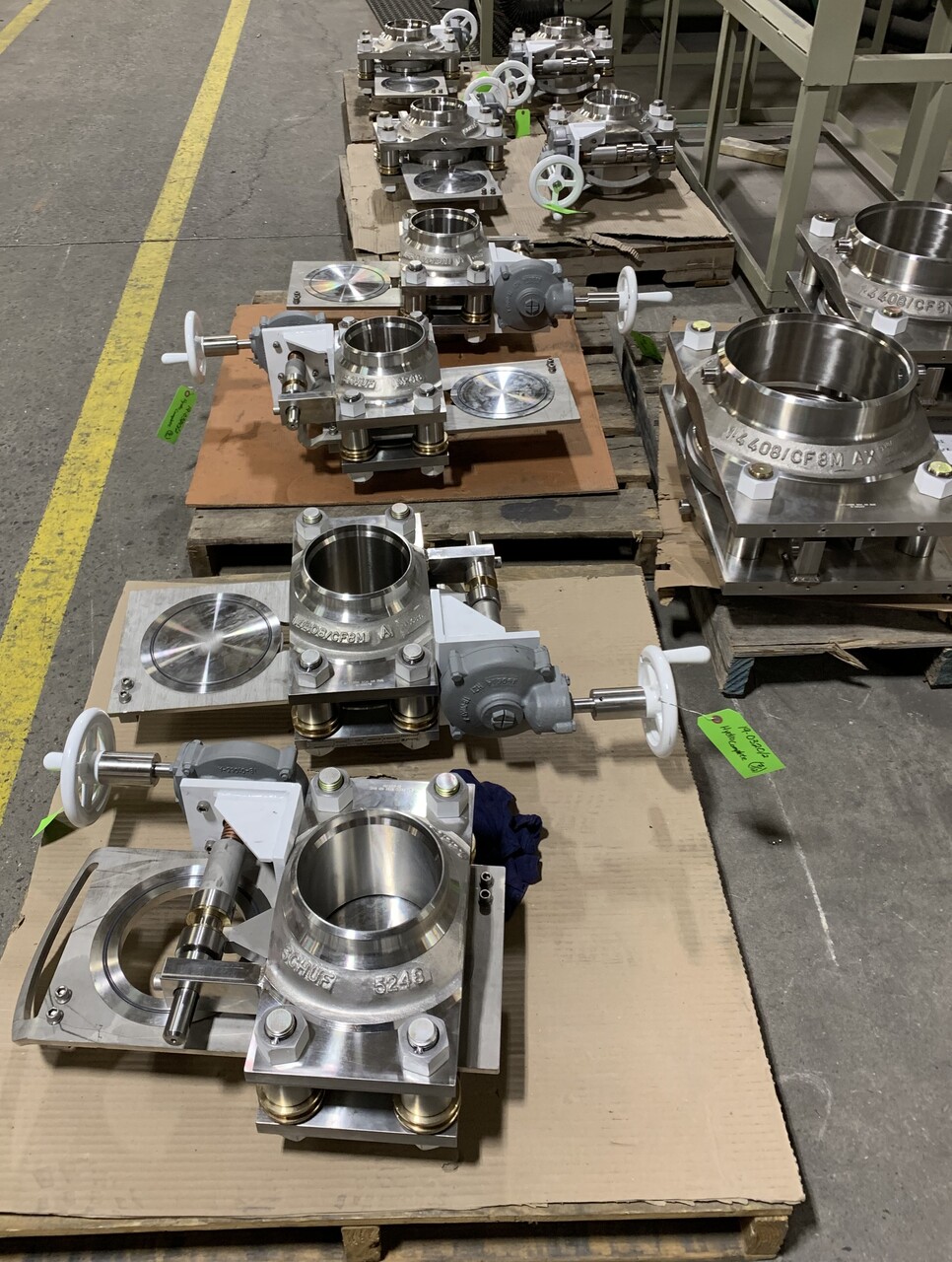

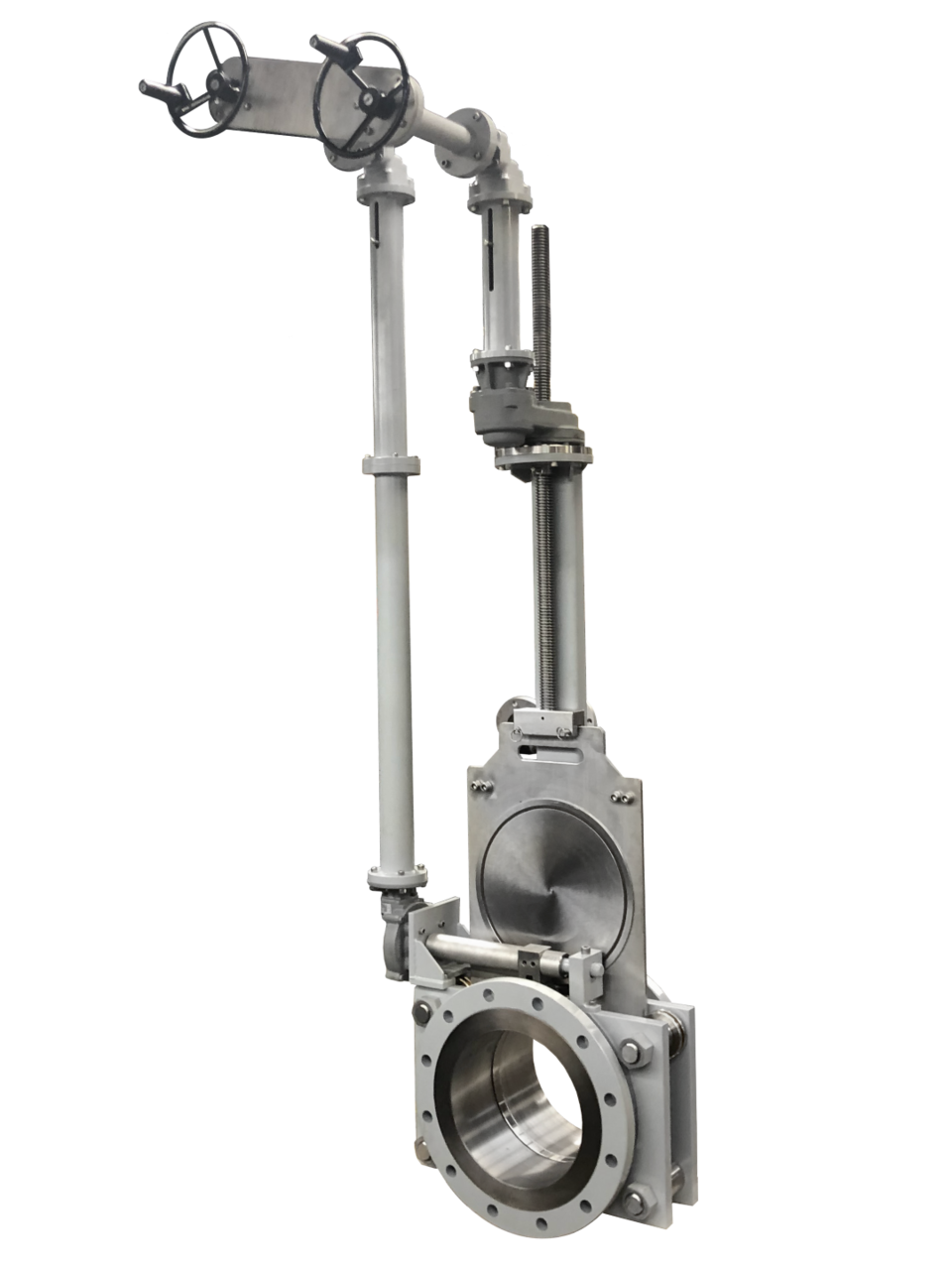

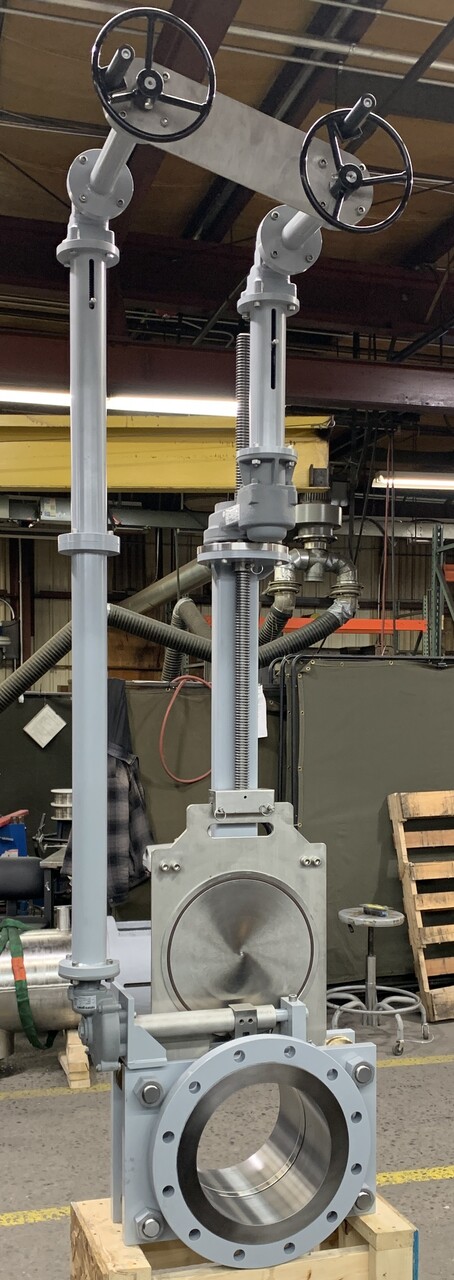

- Pneumatic, electric or manual actuation

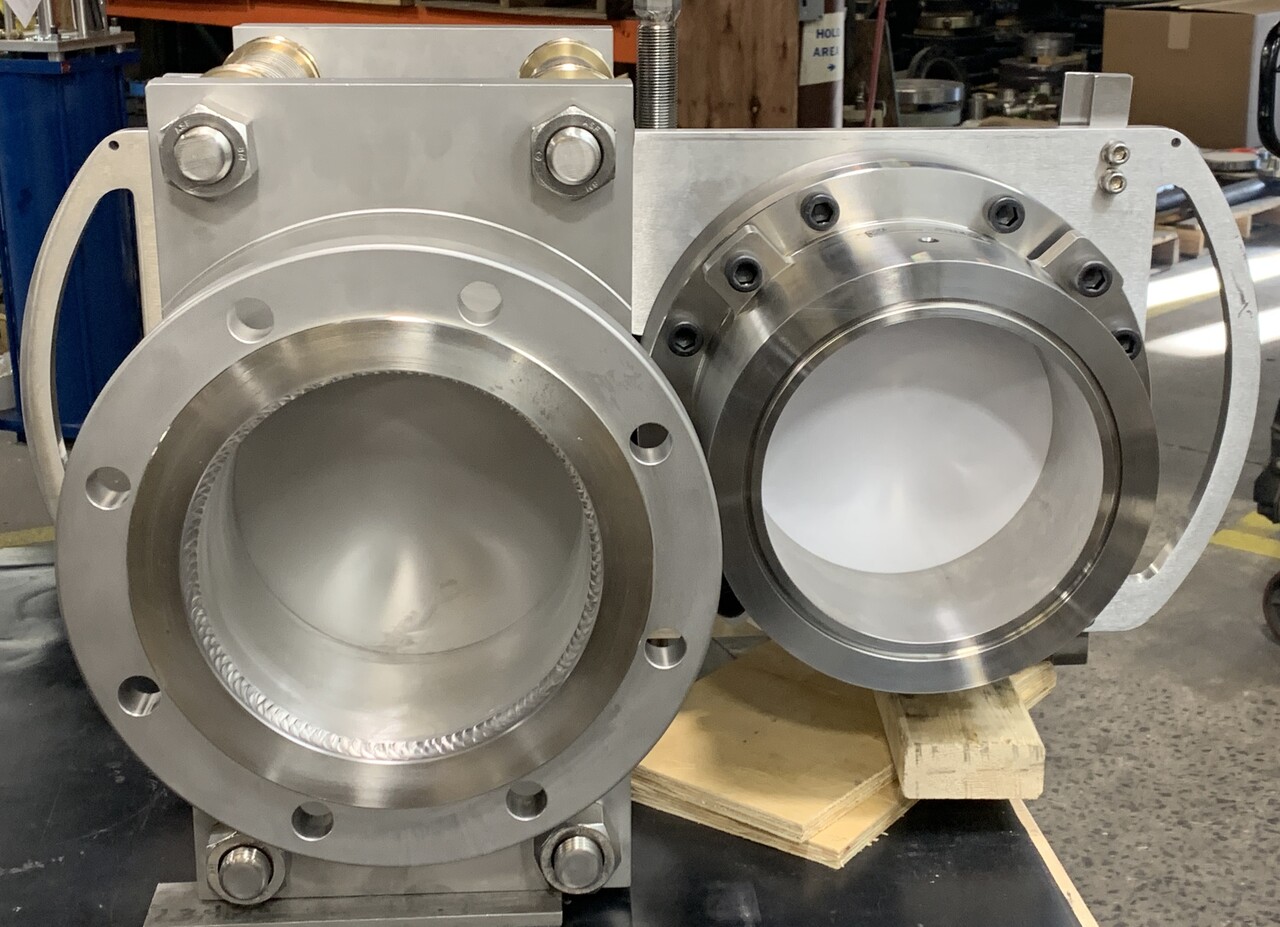

- Filter, rupture disc or sieve integration in the spectacle plate

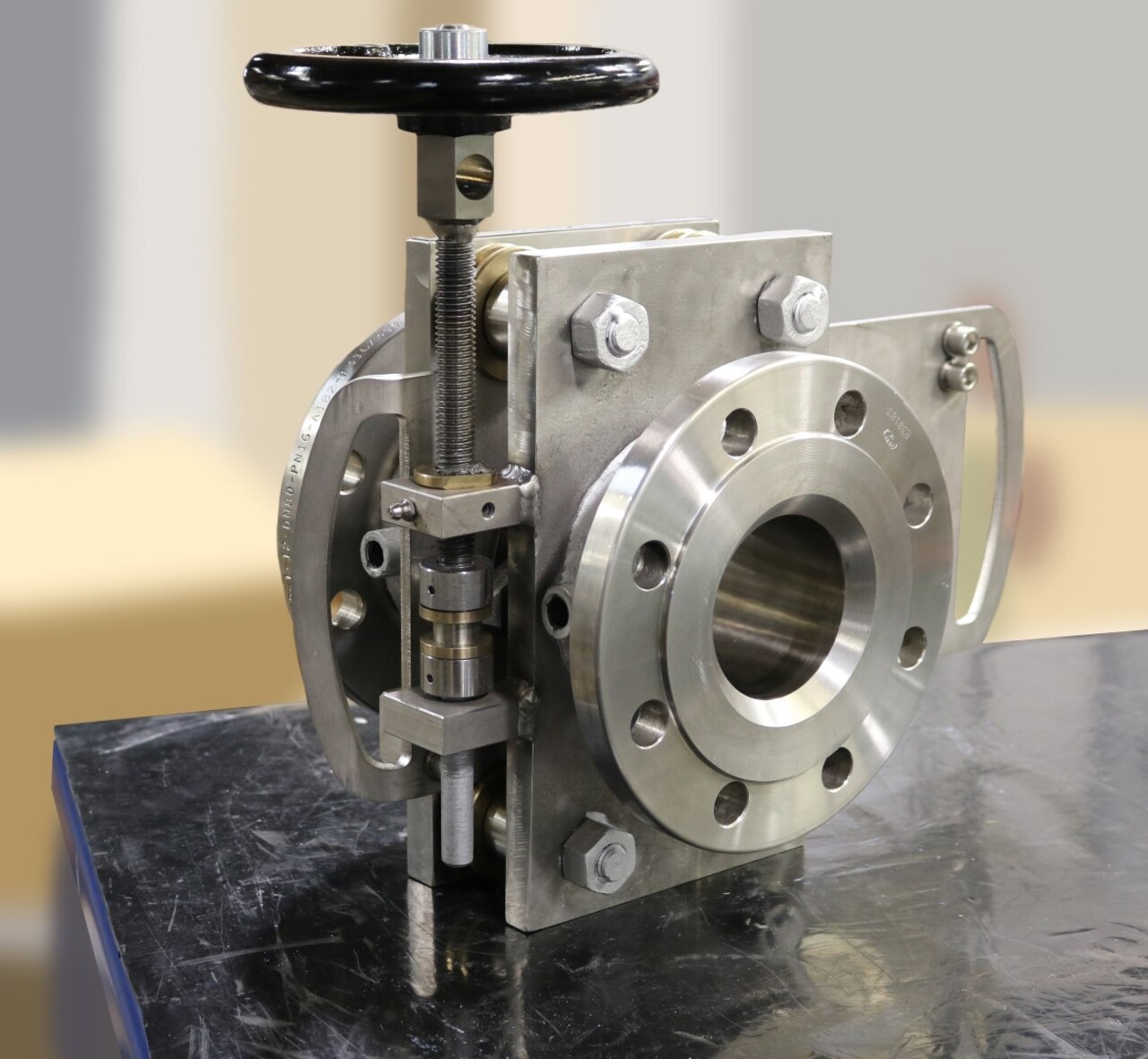

- Drain, vent and purge connections
- Special anti corrosive or medium driven coatings or linings (such as Sermetal, Epoxy, PFA or ceramics)
- Reinforced designs for challenging operating environments

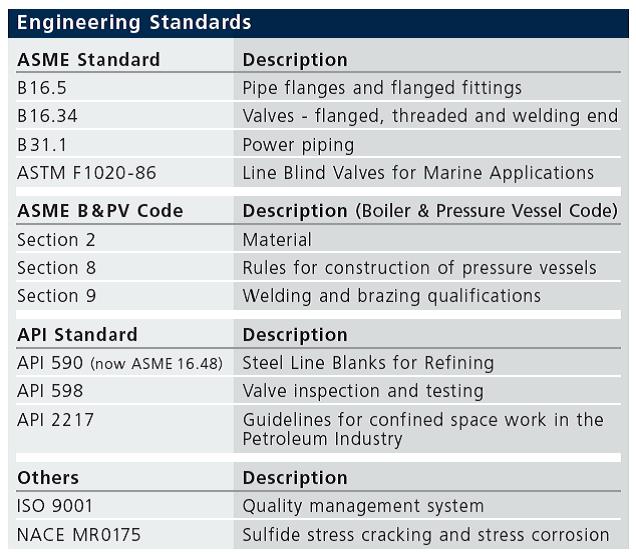

Engineering Standards
Fetterolf applies the most stringent design criteria to all line blind products. There is no room for compromise for a product that is used to ensure personnel safety.
